SMD5050 Surge Protector Ceramic Gas Discharge Tube 5050 SMD GDT Protection Circuit for Power Supplies
Description of SMD5050 Gas Discharge Tube
SMD5050 Gas Discharge Tubes (GDT) series provides high levels of protection against fast rising transients caused by lightning disturbances. Offered in a miniature surface mount package, it has a surge rating of 3KA/2kA 8/20μs.
SMD5050 GDTs are high voltage (1000-3600V) components designed for surge protection and high isolation applications. It is also suitable for applications for which bias voltage or signal levels of several hundred volts are normally present. SMD5050 GDTs can be used in conjunction with MOVs (Metal Oxide Varistors) to provide superior protection performance for AC applications.

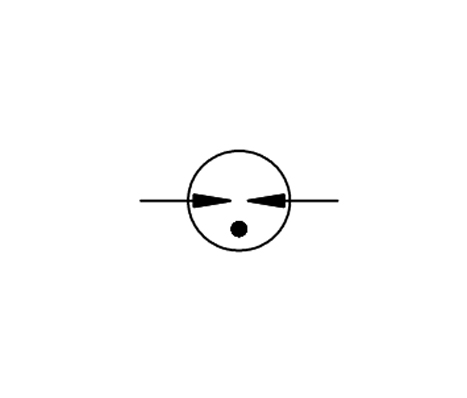

SMD5050 Series Gas Discharge Tubes(GDT) Electrical symbol
Features of SMD 5050 Gas Discharge Tube
• Voltage Ranges 1000V to 3600V
• Excellent response to fast rising transients
• 8/20μs Impulse current capability: 3KA/2kA
• Non-Radioactive
• Ultra Low capacitance (<0.8pF)
• Lead-free compliant
• RoHS and REACH compliant
• Size: 4.2mm*5mm*5mm
• Storage and operational temperature: -40~+90°C
Applications of SMD5050 Surge Protector
Automotive:
• On-board chargers
• Vehicle charging stations
Others:
• LED lighting
• Power supply
• Photovoltaic
• Air conditioning
Part Number Code of SMD5050 Ceramic Gas Discharge Tube
Electrical Characteristics of Ceramic Gas Discharge Tube 5050 SMD
| Part Number | DC
Spark-over Voltage 1) 2) @100V/S | Impulse Spark-over Voltage | Insulation Resistance
3) | Capacitance @1MHz | Glow Voltage @10mA | Arc Voltage @1A | AC
withstand voltage @5mA 1Min | Life Ratings |
| Impulse Discharge Current @8/20μS | AC
Discharge Current @50Hz 1S |
| 100V/μS | 1KV/μS |
| Max | Max | Min | Max | Type | Type | Min | Nominal
±5 times | Max 1 time | Nominal 5 times |
| V | V | V | GΩ | pF | V | V | V | KA | KA | A |
| SMD5050-1000 | 1000±20% | 1600 | 1800 | 1 | 0.8 | 160 | 15 | 500 | 3 | 4 | 3 |
| SMD5050-1200 | 1200±20% | 1800 | 2000 | 1 | 0.8 | 160 | 15 | 600 | 3 | 4 | 3 |
| SMD5050-1500 | 1500±20% | 2300 | 2500 | 1 | 0.8 | 235 | 15 | 750 | 2 | 3 | 2 |
| SMD5050-2000 | 2000±20% | 2800 | 3000 | 1 | 0.8 | 260 | 20 | 1000 | 2 | 3 | 2 |
| SMD5050-2500 | 2500±20% | 3300 | 3600 | 1 | 0.8 | 260 | 20 | 1300 | 2 | 3 | 2 |
| SMD5050-2700 | 2700±20% | 3500 | 3800 | 1 | 0.8 | 260 | 20 | 1400 | 2 | 3 | 2 |
| SMD5050-3000 | 3000±20% | 3800 | 4000 | 1 | 0.8 | 260 | 20 | 1600 | 2 | 3 | 2 |
| SMD5050-3600 | 3600±20% | 4700 | 5000 | 1 | 0.8 | 260 | 20 | 1900 | 2 | 3 | 2 |
| Glow to Arc transition Current………………………………………...... ~0.3A |
| Weight ~0.42g |
| Operation and storage temperature……………………………………. -40~+90°C |
| Climatic category (IEC 60068-1) 40/90/21 |
| Marking………………………………………………………………… Without |
| Surface treatment…………………………………………................. Matte-tin plated |
| 1) At delivery AQL 0.65 level II, DIN ISO 2859.
2) In ionized mode.
3) Insulation Resistance Measuring Voltage at DC 100V.
Terms in accordance with ITU-T Rec. K.12, IEC 61643-311, GB/T 9043. |

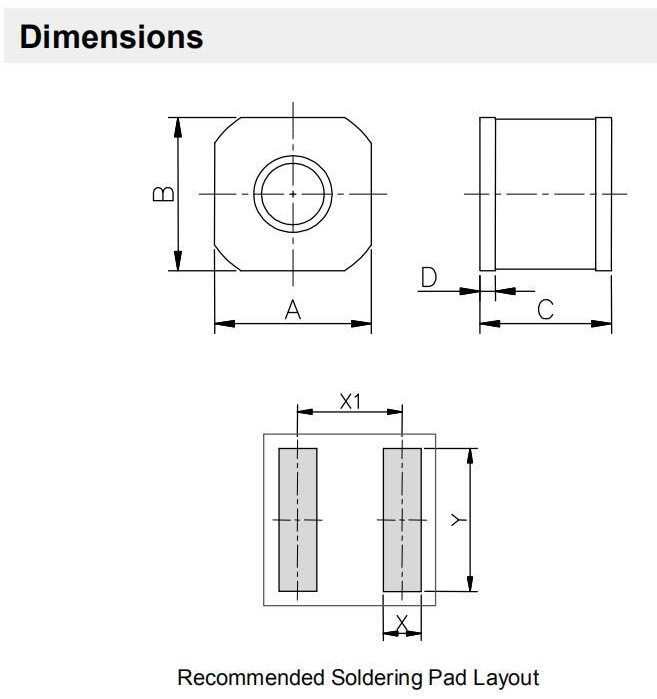

Dimensions of Gas Discharge Tube 5050 SMD
| Symbol | Millimeters | Inches |
| A | 5.0±0.2 | 0.197±0.008 |
| B | 5.0±0.2 | 0.197±0.008 |
| C | 4.2±0.3 | 0.165±0.012 |
| D | 0.5±0.1 | 0.020±0.004 |
| X | 1.2 | 0.047 |
| X1 | 4.0 | 0.165 |
| Y | 5.5 | 0.217 |
| Symbol | Millimeters | Inches |
| W | 16±0.3 | 0.630±0.012 |
| A0 | 5.3±0.1 | 0.209±0.004 |
| B0 | 4.3±0.1 | 0.17±0.004 |
| K0 | 5.2±0.1 | 0.205±0.004 |
| P | 12±0.1 | 0.472±0.004 |
| F | 7.5±0.1 | 0.295±0.004 |
| E | 1.75±0.1 | 0.069±0.004 |
| D | 1.5+0.1/-0.0 | 0.059+0.004/-0.0 |
| P0 | 4±0.1 | 0.157±0.004 |
| P2 | 2±0.1 | 0.079±0.004 |
| T | 0.4±0.1 | 0.016±0.004 |
| D0 | 13.3±0.15 | 0.524±0.006 |
| D1 | 330±2 | 12.992±0.079 |
| D2 | 100+1/-2 | 3.937+0.039/-0.079 |
| W1 | 16.5±0.4 | 0.65±0.016 |
Soldering Parameters - Reflow Soldering (Surface Mount Devices)
| Reflow Condition | Pb - Free assembly |
| Pre Heat | -Temperature Min (Ts(min)) | 150°C |
| -Temperature Max (Ts(max)) | 200°C |
| - Time (min to max) (ts) | 60 -180 Seconds |
| Average ramp up rate ( Liquids Temp TL) to peak | 3°C/second max |
| TS(max) to TL - Ramp-up Rate | 5°C/second max |
| Reflow | - Temperature (TL) (Liquids) | 217°C |
| - Time (min to max) (ts) | 60 -150 Seconds |
| Peak Temperature (TP) | 260 +0/-5°C |
| Time within 5°C of actual peak Temperature (tp) | 10 - 30 Seconds |
| Ramp-down Rate | 6°C/second max |
| Time 25°C to peak Temperature (TP) | 8 minutes Max |
| Do not exceed | 260°C |
