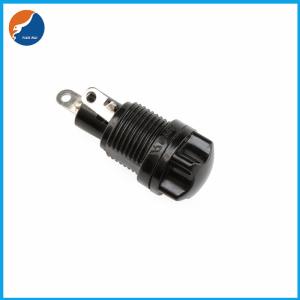

H3-26 5x20 Electronic Glass Ceramic Screw Type Cap Panel Mount Fuse Holder

Name: H326 5x20 Electronic Glass Ceramic Screw Type Cap Panel Mount Fuse Holder
Brand: Tian Rui
Price: 1 USD

Wholesale H3-26 5x20 Electronic Glass Ceramic Screw Type Cap Panel Mount Fuse Holder from china suppliers

Brand Name : Tian Rui

Model Number : H3-26

Certification : ROHS

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : D/P, T/T,Paypal, Western Union

Supply Ability : 1000000PCS/Month

Delivery Time : 5-7 Days

Packaging Details : 1000PCS/Bag

Load : AC250V 10A

Fuse Size : 5.2x20mm

Material : PF

Terminal : Brass,nickel plated

Cap : Screw type

Dielectric Strength : AV1500V 1 minute15mm

luslation Resistance : DC 500V 100M ohm Min

Flame retardancy : UL94V-0

Ambient temperature : -55°C-85°C

Color : Black

Contact Now

H3-26 5x20 Electronic Glass Ceramic Screw Type Cap Panel Mount Fuse Holder

Load: AC250V 10A

Fuse size: 5.2x20mm

Housing&Top cap: Black,PF

Terminals: Brass,nickel plated.

Screw type cap
Soldering terminal
Flame retardancy: UL94V-0
Ambient temperature: -55°C---85°C
The product is safe and environmentally friendly, in line with ROHS

FUSE HOL DER FOR 5.2X20mm FUSES

SPECIFICATIONS

luslation Resistance	DC 500V 100M ohm Min.
Dielectric Strength	AC 1500V 1 minute
Contact resistance	≤0.02Ω

Features

5*20mm fuse holder for glass for ceramic tube fuse.
chassis mount single clip fuse holders
high quality fuse holders for your restorations and projects

Applications

Suitable for kinds of mechanical electrical control panel installation

Drawing

H3-26 5x20 Electronic Glass Ceramic Screw Type Cap Panel Mount Fuse Holder
