0.5A - 30A ATN Series Mini Car Fuses 80V DC Copper Alloy Plug In Blade Type

Dongguan Tianrui Electronics Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

0.5A - 30A ATN Series Mini Car Fuses 80V DC Copper Alloy Plug In Blade Type

Brand Name : Tian Rui

Model Number : ATN-80V

Certification : ROHS UL

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : D/P, T/T,Paypal, Western Union

Supply Ability : 1000000PCS/Month

Delivery Time : 5-7 Days

Packaging Details : 1000PCS/Bag

Product Name : Mini Car Fuses

Rated Current : 0.5A to 30A

Rated Voltage : 80V DC

Body : Nylon with 25% Fiberglass

Cover : Nylon with 25% Fiberglass, Blue

Metal : Copper Alloy, gal.Sn

Interruption Ratings : 1000A 80VDC

Type : Mini Car Fuse

Color : Colorful

Application : Automotive

Contact Now

0.5A to 30A Small DC Plug-in ATN Automobile Automotive Mini Auto Car Blade 80V Car Fuse

Specifications

ATN 80V Mini Car Fuse

Current : 0.5A To 30A

Voltage: 80VDC

Model:ATN-80V

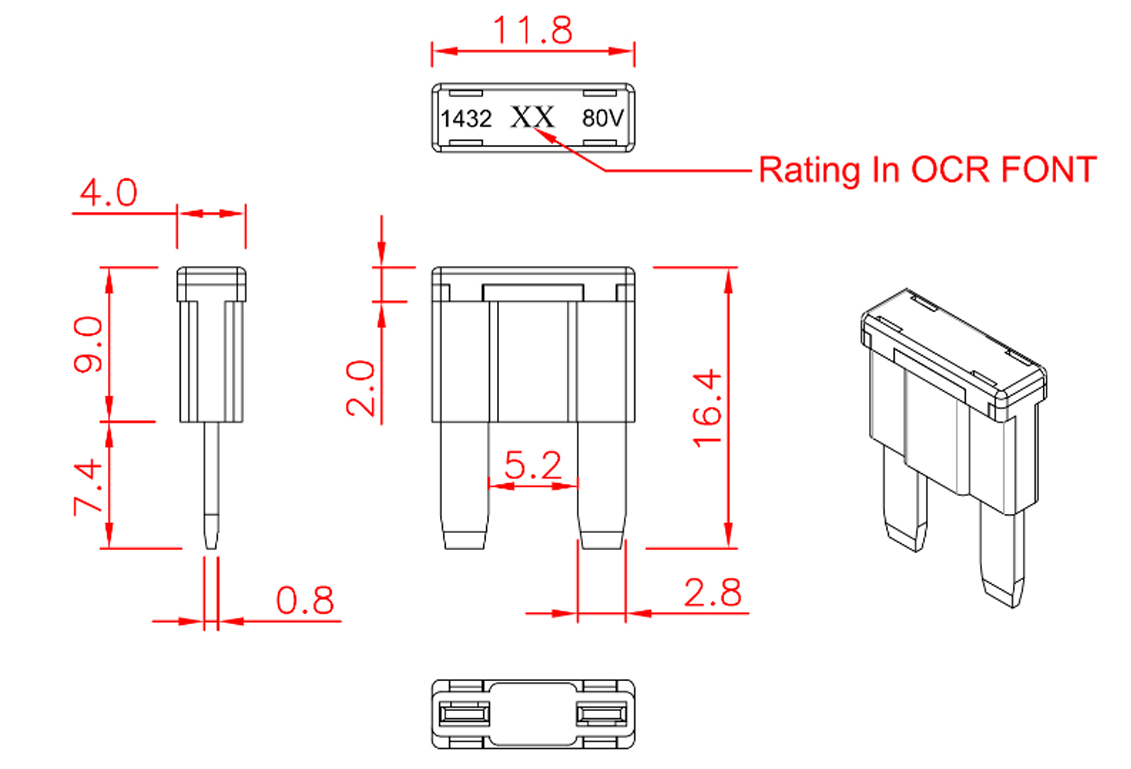

Size: Mini Blade Fuse

Type: Plug-in

Body Material: Nylon With 25% Fiberglass

Cover Material: Nylon With 25% Fiberglass, Red

Metal Material: Copper Alloy, Gal.Sn

Interruption Ratings: 1000A 80VDC

Amperage

0.5-30A

Voltage

80V

Body Material

Nylon with 25% Fiberglass

Cover Material

Nylon with 25% Fiberglass, Red

Metal Material

Copper Alloy, gal. Sn

Interruption Ratings

1000 A 80VDC


Time -Current Characteristics

% Of Ampere Rating

Opening Time

0.5~16A 20~30A
100% carry
135% 0.75~3600 s
200% 0.15~5 s 0.15~60 s
350% 0.02~1 s
600% 0.01~0.1 s

Part Number Amperage Body Color
1432 0500 200 0.5A 0000
1432 1100 200 1A 0000
1432 1200 200 2A 0000
1432 1300 200 3A 0000
1432 1400 200 4A 0000
1432 1500 200 5A 0000
1432 1600 200 6A 0000
1432 1700 200 7A 0000
1432 1750 200 7.5A 0000
1432 2100 200 10A 0000
1432 2120 200 12A 0000
1432 2150 200 15A 0000
1432 2160 200 16A 0000
1432 2200 200 20A 0000
1430 2250 200 25A 0000
1430 2300 200 30A 0000

Description

ATN auto mini fuse are used in motor vehicles,boats and trailers to protect the electrical wiring and equipment. This mini fuse element is for the construction shown and is not intended to restrict the design and use of other configurations and materials capable of meeting the vehicle requirements. This type of fuse also has led fuse.

Features

Blade fuses (also called spade or plug-in fuses.


Comes with a plastic body and two prongs that fit into sockets


Mostly used inautomobiles


Each fuse is printed with the Rated Current in Amperes on the top

Applications

During the use of the car, if any electrical equipment does not work, it may be caused by a blown fuse and need to be replaced in time.


The methods are:
1. Turn off the ignition switch and open the fuse box cover.
2. Replace the fuse.

0.5A - 30A ATN Series Mini Car Fuses 80V DC Copper Alloy Plug In Blade Type

0.5A - 30A ATN Series Mini Car Fuses 80V DC Copper Alloy Plug In Blade Type

Notes


(1) Replace the fuse according to the rated current value indicated on the cover of the fuse box. Do not change to a fuse with a higher rated current.


(2) If the new fuse is blown out immediately, it means that the circuit system may be faulty and should be repaired as soon as possible.


(3) When there is no spare fuse. In an emergency, you can replace the fuse on other equipment that does not affect driving and safety.


(4) If a fuse with the same current load cannot be found, one with a lower rated current than the original fuse can be used instead.
