High Energy Absorption Block Metal Oxide Varistor MOV 4700V 70KA MYE70-472 V282BB60
Varistors are voltage-dependent resistors with a symetrical V/I characteristic curve whose resistance decreases with increasing voltage, connected in parallel with the electronic device or circuit that is to be guarded, they form a low-resistance shunt when voltage increases and thus prevent any further rise in the overvoltage.
Varistor is sintered zinc ovide together with other metal oxide additives under specific conditions. Which produces a ploycrystalline ceramic whose resistance exhibit a pronounced dependence on voltage.
It is widely used in railway automatic signal, traffic control center, communication relay station, low voltage power distribution, semiconductor devices and various electrical equipment operation overvoltage protection and atmospheric overvoltage protection.
Specification
| Product Name | Block Metal Oxide Varistor |
| Varistor Voltage | 4700V |
| Surge Current | 70KA |
| Leakage Current | ≤40uA |
| Rated Power | 1.5W |
| Operating temperature | -40C to 85C |
Features
1. High energy absorption block metal oxide varistor (MOV)
2. High peak current: Imax 70kA
2. Sealed with inflaming retarding plastic and encapsulated with epoxy resin
3. Used in oil-drilling, mining, transportation equipment and other heavy industrial AC line.
Application
1. Semiconductor device protection
2. Surge overvoltage protection for household appliances
3. Surge overvoltage protection for communications, measurement, and control instruments
4. Solenoid valve and relay operation overvoltage protection
Contact Details:
Andy Wu
Email: andy@tianrui-fuse.com.cn
MP/Whatsapp: +86 13532772961
Wechat: HFeng0805
Skype: andywutechrich
QQ: 969828363
|
|

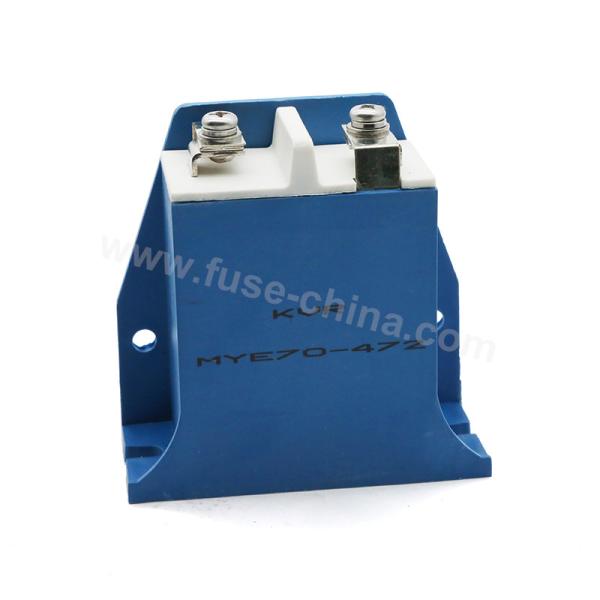

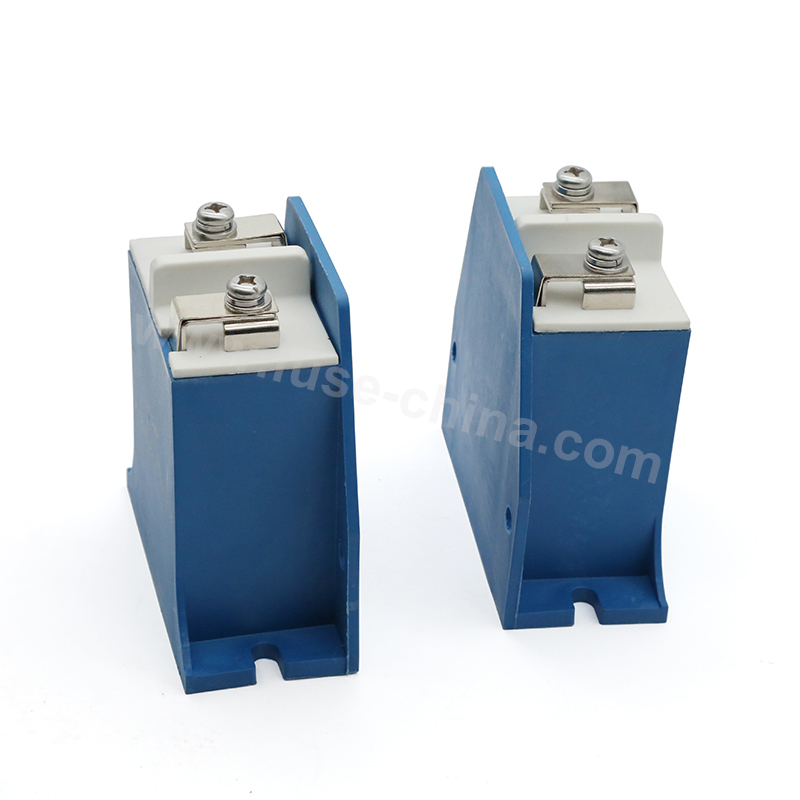

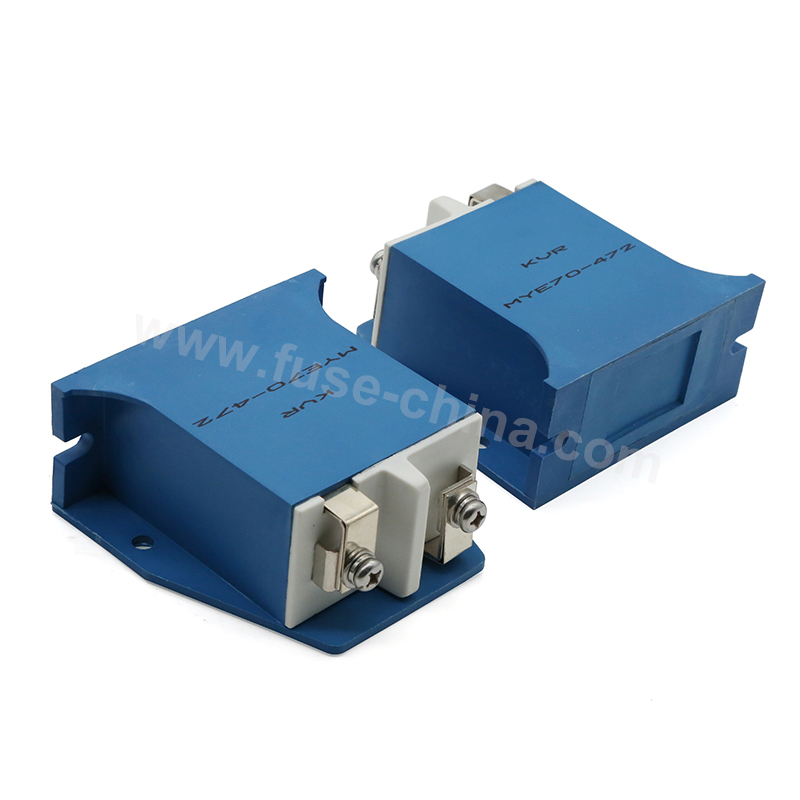

High Energy Absorption Block Metal Oxide Varistor MOV 4700V 70KA MYE70-472 V282BB60 Images
|
